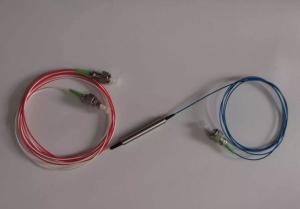

1064nm Polarization Maintaining Optical Circulator Panda Fiber 300mW

  • 1
  • 2
  • 3

Brand Name : Unifiber or OEM

Model Number : 3 port Polarization Maintaining PM Optical Circulator

Certification : ROHS

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500pcs/day

Delivery Time : 3~5 days

Packaging Details : Blister case

Product : 3 port Polarization Maintaining PM Optical Circulator

No of ports : 3 or 4 ports

Wavelength : 1064nm 1310nm 1550nm or others

Fiber : PM Panda fiber

Pigtail type : 250um or 900nm loose tube

Power Handling : 300 mW

Connector : FC/APC

Contact Now

The 3 ports Polarization Maintaining optical circulator is a 3 ports micro-optic device built with PM fiber. The PM Circulator transmits a signal from port1 to port2 and transmits another signal from port2 to port3 while maintaining the polarization of the signal. It is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is widely used in fiber amplifier systems, fiber lasers and optical fiber sensors.

Application:
Fiber lasers

Fiberoptic Sensors

Optical Amplifier
CATV Systems
Dispersion Compensation

Features:
High extinction ratio

High isolation

Low Insertion Loss
Excellent stability and reliability

1064nm Polarization Maintaining Optical Circulator Panda Fiber 300mW

1064nm Polarization Maintaining Optical Circulator Panda Fiber 300mW

1064nm 1310nm 1550nm 3 port Polarization Maintaining PM Optical Circulator
Parameter Unit Value
Type Type A Type B Type A Type B
Operating Wavelength nm 1310 or 1550 1064
Bandwidth nm ±30 ±20 ±5 ±5
Typ. Isolation dB 46 20 52 30
Isolation dB ≥40 ≥30 ≥45 ≥25
Typ. Insertion Loss dB 0.7 0.6 3.4 1.8
Insertion Loss dB ≤0.9 ≤0.8 ≤4.0 ≤2.1
Extinction Ratio dB ≥22 ≥20 ≥20 ≥20
Cross Talk dB ≥50
Return Loss dB ≥50
Power Handling mW ≤300
Fiber Type PM Panda Fiber
Fiber Length m 0.8
Operating Temperature °C -5 to +70
Storage Temperature °C -40 to +85
Dimensions mm φ5.5 × L35

Note: For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis

1064nm Polarization Maintaining Optical Circulator Panda Fiber 300mW
1064nm Polarization Maintaining Optical Circulator Panda Fiber 300mW
